SUR RON
Mod Shop
Extreme Power and Performance Sur-Ron Mod Shop by EV Freaks puts you in control of your ride with top-of-the-line Sur-Ron upgrades, accessories, mods, and batteries. The Sur-Ron Light Bee X is a reliable electric bike with a lot of potential – with our help, you can turn it into something incredible. We’re here to help you get your tires dirty and go crazy!

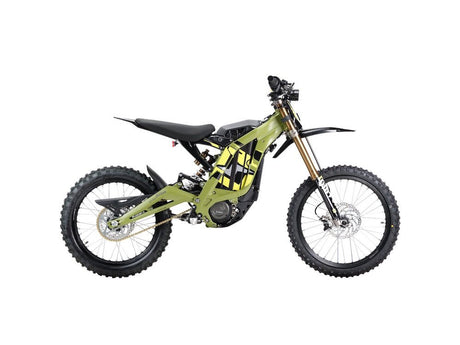

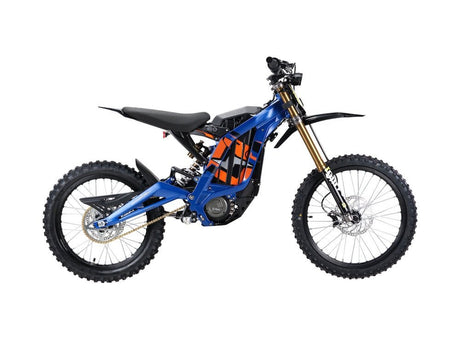

Sur Ron Light Bee X (L1E) Electric Bike EVF Special
Sale price £4,500.00SUR RONS 2023 OFF ROAD & ROAD LEGAL L1E MODELS
The Electric powered SUR-RON LB X Series Dual Sport E Dirt Bike promises advanced fun on all terrain. 60V and more than 6kW of peak power from a removal Panasonic Lithium-ion battery pack. Forged lightweight alloy frame combined with hi-spec components, total weight just 47kg. 4 Piston Hydraulic Disc Brakes Front and Rear. LCD dash with USB charger point. Aimed at youth to adult, with a climbing ability of over 45° it offers hours of near-silent fun with a range of 20 to 60 miles per charge, depending on model. Top speed 45 mph +, Fast Re-Charge 2.5 to 3.5 hours. Full UK technical, spares and marketing support.
All colors of the LB X-Series Dirt Bike come complete with a front fender. *In the additional images of the black Sur-Ron LBX, the front fender shown comes as standard - the rear hugger and chain guard are optional.*
The bike comes equipped with a factory-fitted GPS tracker - features include real-time tracking, theft alerts, geo-fence security zones & the ability to track your Sur-Ron bike from your phone and/or computer.*
New updates on the X Series Off-Road Version for 2020 Models Onwards:
Sine wave controller delivers smoother power with more torque with ReGen for improved range.
DNM, RST, or Fastace Suspension
Improved riding position: wider thicker seat combined with wider higher bars.
Heavier duty Gold O Ring chain for lower maintenance & reduced noise.
Updated brakes: 4 pot titanium finish calipers now with sintered pads with improved heat dissipation and braking power.
Pro handlebar grips in grey.
Specifications
| MOTOR | |
|---|---|
| Motor Type | PMSM |
| Mounting Position | Mid |
| Weight / Motor External Diameter | 7.0kg / 180mm |
| Motor Axial Length | 130mm |
| Peak Efficiency | 95.60% |
| Cooling Method | Air-Cooled |
| CONTROLLER | |
| Controller Type | X Version Sine Wave |
| Dimensions | 240mm x 110mm x 50mm |
| Peak Efficiency | 98.50% |
| Power Modes | Eco and Sport |
| MOTOR POWER SYSTEM | |
| Rated Voltage | 60V (DC) |
| Rated Power / Peak Power | 3000W / 6000W |
| Rated Torque / Peak Torque | 10.2Nm / 39.00Nm |
| Motor Shaft Output Torque @ 1000RPM | 35.40Nm |
| Rated Rotation Speed | 4300rpm |
| Peak Efficiency | 97.8% |
| Range of Efficiency (≥80) | 1.4Nm - 21.5Nm |
| CERTIFICATES | |
| Road Legal | No |
| TRANSMISSION | |
| Gear Ratio | 1: 7.6 |
| Transmission | Primary Belt & 420 Drive Chain |
| Belt Brand & Model | German Continental Brand, 8M CXA |
| ELECTRICAL COMPONENTS | |
| Horn | European Standard Horn |
| Battery | 60V 34A Lithium Battery with 176 Panasonic Cells |
| Battery Life Time | 500 Cycles (and then the capacity reduces step by step) |
| Battery Charge Level | Integrated Battery LCD Display |
| Charger | 10A |
| Charging Time | 2.5-3.5 Hours |
| USB Connection | USB-2.1 A Single Socket |
| Speedometer | LCD Digital Speedometer |
| LED Headlight & Rear Light | Yes |
| CRATE DATA | |
| Crate Dimension | 1650mm x 850mm x 310mm |
| Gross Weight | 70kg |
| To Assemble from Crate | Handlebars, foot rests & insert front wheel |
| WARRANTY | |
| Battery / Chassis / Swing Arm | 18 Months (or up to 20,000 miles on Battery whichever sooner) |
| Please be aware that any work on the high voltage systems MUST be carried out by a qualified dealer carrying hybrid electric vehicle certification. | |
| Other Components | 12 Months, excluding service items and subject to servicing NB Warranty work is carried out free of charge subject to proof of correct service history.Surron warranty is a return to dealer cover and does not include transportation costs. We can arrange collection and delivery, but the cost must be paid by the owner, prices available upon request. |
| VEHICLE | |
| Chassis - Swing Arm Material | No. 6061 T4 & T6 Aluminium Alloy |
| Chassis Construction Method | Forged by 6000 Tons of Pressure |
| Chassis Surface & Colour Processing | Anodic Oxidation |
| Front Suspension | DNM, RST or Fastace |
| Rear Shock Absorber | Adj DNM, RST or Fastace Shock with TR Suspension Link System |
| Wheel Type & Size | Spoke Wheels, Front/Rear 19 x 1.4 Alloy Hubs |
| Tire Size | Front/Rear 70/100-19 CST |
| Top Speed | 47 MPH 73KMH Varies depending upon load and gearing |
| Max Range | 60 Miles @ 20 MPH average speed depending upon terrain |
| Net Weight | 47kg plus battery |
| Max Load | 100kg (15.75 Stone) |
| Max Climb | 45° |
| Rear Sprocket | 48T |
| Side Stand | Yes with kill switch |
| Vehicle Dimensions | 1870mm x 780mm x 1040mm |
| Min. Ground Clearance | 270mm |
| Wheelbase | 1260mm |
| Seat Height | 84 to 88cm |

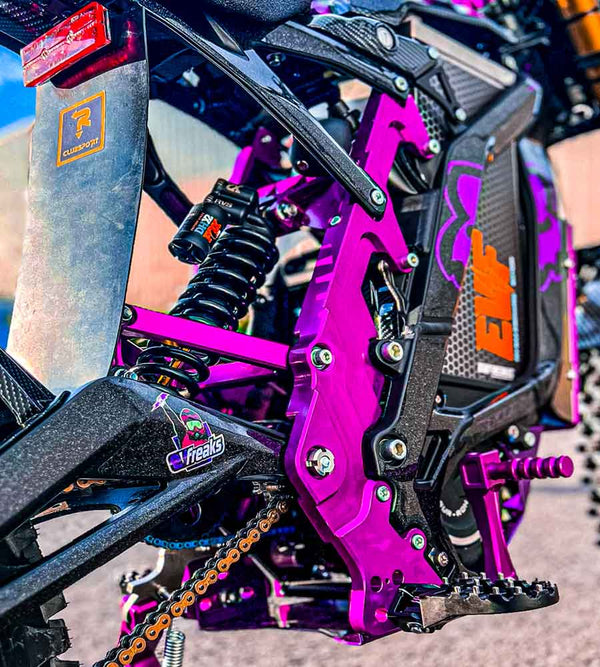

XL Frame Extender - Fully CNC Machined - Increase the Size of your Sur-Ron
Regular price £1,100.00 Sale price £997.00 Save £103.00Looking for a way to extend your Sur-Rons performance? Why should you stop at the factory limitations of your Light Bee?
Get some real elbow room on your ride with our in house CNC machined Surron XL Frame Extender. It takes a small bike and turns it into a MonsterBee beast. With 50mm in total wheelbase gain, you'll also get more frame sturdines and stability! Not only will you get more controll with a longer wheel base, but you'll also now be able to ride higher with the extended seat possition and enjoy the ride even more with the shiffted pegs possition!
Features:
- Kit Includes 3 CNC milled parts only
- Wheelbase gain +50mm
- Reinforces whole frame and feels more sturdier
- Seat lift: upwards +50mm and backwards +30m
- Pegs extension +25mm
- CNC machined in house
- Ultra-light aircraft-grade aluminum class 7
- MX Bike Experience
- Anodised in high finish and laser logo engraved
- Highly recommended to run it with #219 EVFREAKS Chain Kit
Performance review videos:
Note:
Stop getting your foot caught on the extended swingarm.
This patent-pending frame extender is the perfect solution to overcome the limitations of the OEM or especially extended swingarm upgrades.
It's a much better option because it doesn't have the same leverage issues of an extended swingarm - as we have strengthened the original shock mount area known as weakest point - by adding thickness and shape with completely custom CNC bridge.
Reinforced Suspension Triangle Sur-Ron
Regular price £127.00Beef up your Sur-Ron accessories with aircraft-grade aluminum. The EV Freaks reinforced progression triangle can handle any crash landing and the most extreme off-road riding. Like all of our plug-and-play Sur-Ron upgrades, this triangle is specially designed for the Light Bee X, and it’s substantially stronger than flimsy factory parts.
With EV Freaks mods, you can push your bike to the limit on bigger jumps and wheelies. Our reinforced triangle is ultra-light and extra strong, so you don’t have to worry about breaking links with excessive weight loads. Best of all, it won’t affect your suspension.
Features:
- CNC machined in house
- Ultra-light aircraft-grade aluminum class 7
- Designed for Road and Offroad riding
- Must to have if you like sending
- Stronger when factory OEM triangle
- Anodised in high finish and laser logo engraved
- Simple installation in under 10 minutes
Rear Brake Disc Fin Guard Sur-Ron
Regular price £116.00Previously the weaknesses of the stock rear brake disc on the Sur-Ron Light Bee X were a problem. Those days are over. Now you can keep your bike out of the shop and ride off-road without fear of breaking your brake discs. It looks good bling too! And the best part? - You're in control of your own destiny.
Like all of our Sur-Ron upgrades, our parts are built with aircraft-grade aluminum that is miles ahead of stock Sur-Ron / Segway parts.
- CNC machined in house
- Lightweight aluminium class 7
- Protects your rear brake disc from damage
- Anodised in high finish and laser logo engraved
- Simple installation in under 10 minutes
Heatsink - Mounting Kit For BAC8000 & BAC4000 Controllers
Regular price £177.00If you're not cooling your BAC controller, then you're not doing it right. Preventing the controller from overheating while protecting it is an important task in any industry where it's deployed. The Heatsink - Mounting Kit will do both. It cools down and protects the controller at the same time. You'll have peace of mind with our Sur Ron upgrades and parts product, knowing that your hardware is protected and cooled down. You won't find a better product on the market today. We guarantee it.
Features:
- FITS BAC8000 & BAC4000
- Includes top mounting bracket for Sur-Ron application
- Side covers for extreme protection included
- Anodised in high finish and laser logo engraved
- Works as Heatsink & Mounting kit at the same time
- Protects your controller from water splash & structural damage
- CNC machined in house
- Ultra-light aircraft-grade aluminum class 7
- Very High quality
- Simple installation in under 10 minutes
Reinforced Suspension Linkage - Stronger and better fits Sur-Ron
Regular price £119.00If you’re looking for the best suspension linkage part for your Sur-Ron, this is it. Ride worry-free and never again have to buy another one! We’ll make sure that your linkage lasts a lifetime by reinforcing the part and preventing it from cracking, bending or going out of alignment.
Combine the reinforced version with our other Sur-Ron / Segway upgrades and mod the Light Bee X / x260 to match your riding style.
After straight plug-and-play installation, you’ll gain better and improved suspension performance for higher jumps.
Replace your cheap sur ron linkage easy to brake with reinforced aircraft-grade aluminum.
Install in 10 minutes with a hex key and spanner
Features:
- Stronger when OEM factory linkage part
- Roller bearings with integrated sealings
- Chromed inserts for longer durability
- Reinforces suspension performance
- Does not affects geometry in anyway
- 6 months replacment warranty
- CNC machined in house
- Ultra-light aircraft-grade aluminum class 7
- Anodised in high finish and laser logo engraved
- Simple installation in under 10 minutes
Suspension Geometry Riser +30mm Linkage
Regular price £119.00Upgrade your Sur-Ron parts with aircraft-grade aluminum. The EV Freaks extebded reinforced linkage is incredibly strong - it’s built for hard ridings.With our extended version, you can add 30mm to the bike clearance for a more comfortable ride and better handling.
Combine the extended version with our other Sur-Ron upgrades and mod the Light Bee X to match your size.
This reinforced linkage adjusts the angle and boosts it with 30mm height clearence gain. After easy plug-and-play installation, you’ll get better ergonomics and improved suspension performance for higher jumps.
Features:
- 30mm (1.5inch) bike clearence gain
- Roller bearings with integrated sealings
- Chromed inserts for longer durability
- Stronger when OEM factory linkage part
- 6 months replacment warranty
- CNC machined in house
- Ultra-light aircraft-grade aluminum class 7
- Anodised in high finish and laser logo engraved
- Simple installation in under 10 minutes
Brake Disc Guard & Double Brake
Regular price £137.00- Aluminium class 6
- CNC machined
- Anodised in very high quality
- Ashdown Farm BrushlessMX Event (5miles enduro loup, 3 laps)
- Drumnlag Scottland BrushlessMX Event (Finished 1st)
- SXWORX Indoor MX Track (Big jumps)
This kit was been tested continuesly for recent 3 months daily on offroad, jumping, crashing, racing, and so on - never let us down!
Replace your weak factory parts now with premium products!
• CNC Machined Aluminium Class 7
• Wheelbase gain: 50mm
• Strenghtens the frame
• Seat lift: Upwards +50mm & Backwards +30m
• Pegs extension: +30mm or stock (pegs has 5 mounting possition)
• Extended belt is supplied
• Kit is absolute masterpiece with only 3 CNC machined components
• Highly recommended to run it with #219 EVFREAKS Chain Kit
